AmScope ME520TC Episcopic and Diascopic Trinocular Metallurgical Microscope, 50X-2500X Magnification, EW10x and EW25x Extreme Widefield Eyepieces, Infinity Plan Long Working Distance Objectives, Kohler Condenser, Brightfield/Darkfield/Polarizing Halogen Illumination with Rheostat, Extra-Large Double-Layer Mechanical Stage, 110V

Product image 1
Product image 2
Product image 3
Product image 4

AmScope ME520TC Episcopic and Diascopic Trinocular Metallurgical Microscope, 50X-2500X Magnification, EW10x and EW25x Extreme Widefield Eyepieces, Infinity Plan Long Working Distance Objectives, Kohler Condenser, Brightfield/Darkfield/Polarizing Halogen Illumination with Rheostat, Extra-Large Double-Layer Mechanical Stage, 110V

  • Metallurgical microscope uses transmitted and reflected light to view metallic specimens, including electronics, or larger specimens not viewable on a standard microscope stage

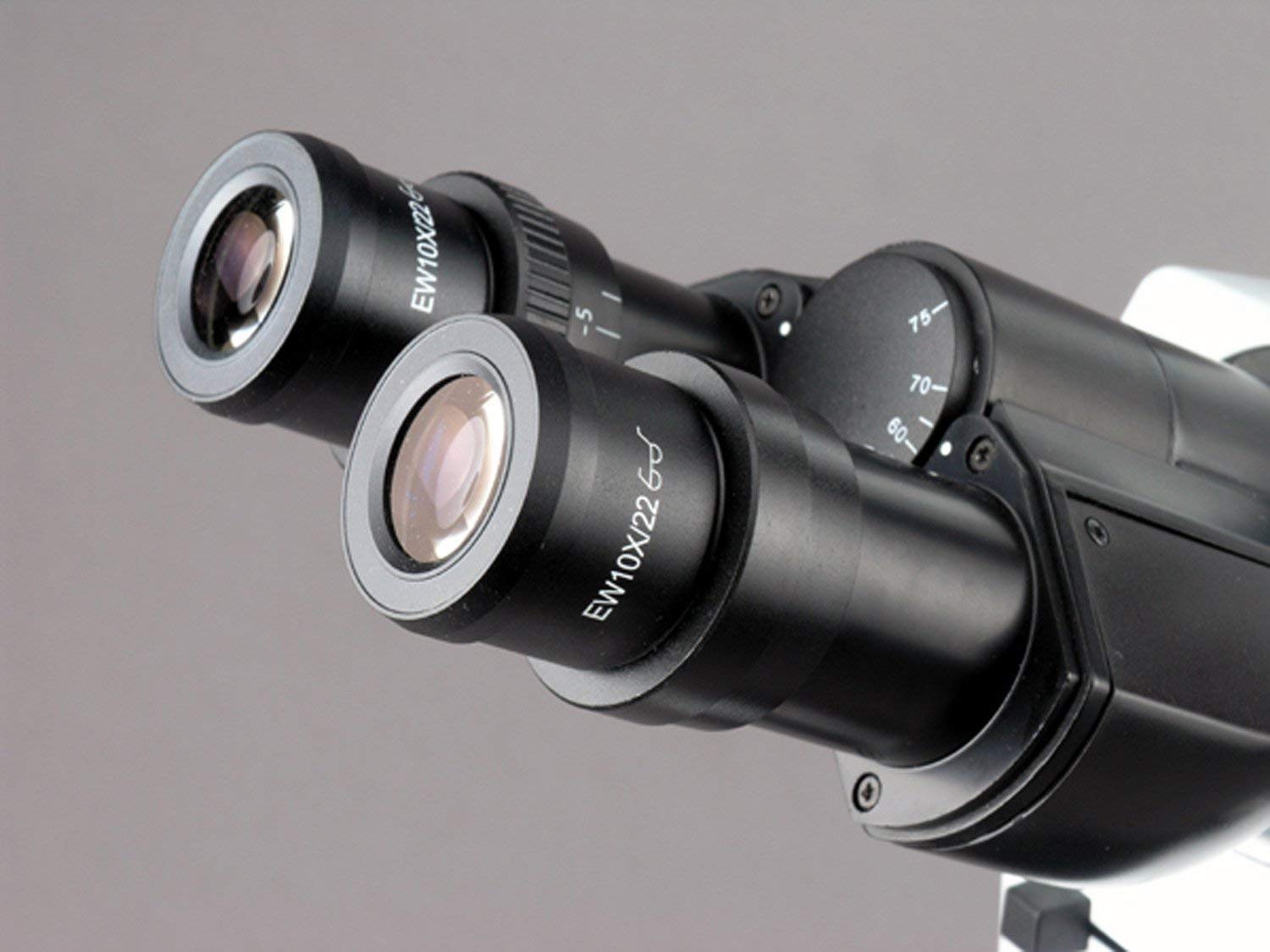

  • Trinocular head with interchangeable pairs of 10x and 25x extreme-widefield eyepieces, one 10x measuring eyepiece, a Siedentopf binocular head with 48 to 75mm interpupillary adjustment, fixed 30-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to enable sharing
  • Reverse-mounted quintuple nosepiece with 5x, 10x, 20x, 50xS (spring), and 100xS (spring, oil) long working distance infinity plan achromatic objectives that provide a longer working distance, color correction, and improved focus over the entire field of view
  • Episcopic (reflected) and diascopic (transmitted) illumination system with Brightfield/Darkfield and polarizing has 100W halogen illumination with rheostat to control light intensity

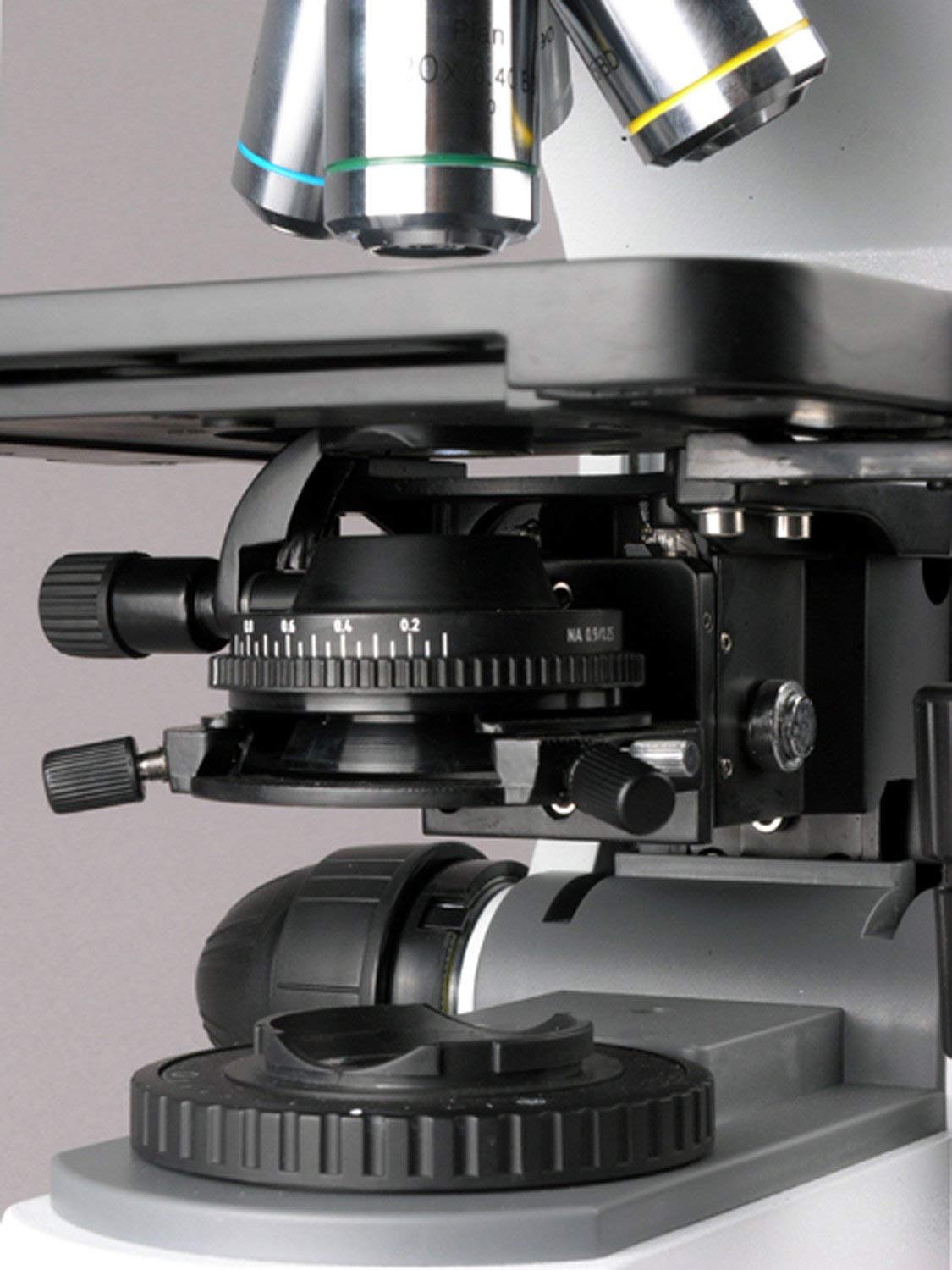

  • Double-layer mechanical stage has 1mm stage divisions with 0.1mm vernier graduations and stage stop; graduated coarse and fine focus with tension control to prevent stage drift
$4,358.99
AmScope ME520TC Episcopic and Diascopic Trinocular Metallurgical Microscope, 50X-2500X Magnification, EW10x and EW25x Extreme Widefield Eyepieces, Infinity Plan Long Working Distance Objectives, Kohler Condenser, Brightfield/Darkfield/Polarizing Halogen Illumination with Rheostat, Extra-Large Double-Layer Mechanical Stage, 110V—
$4,358.99

Product Information

Shipping & Returns

Description

  • Metallurgical microscope uses transmitted and reflected light to view metallic specimens, including electronics, or larger specimens not viewable on a standard microscope stage
  • Trinocular head with interchangeable pairs of 10x and 25x extreme-widefield eyepieces, one 10x measuring eyepiece, a Siedentopf binocular head with 48 to 75mm interpupillary adjustment, fixed 30-degree vertical inclination to reduce eye and neck strain, and 360-degree rotation capability to enable sharing
  • Reverse-mounted quintuple nosepiece with 5x, 10x, 20x, 50xS (spring), and 100xS (spring, oil) long working distance infinity plan achromatic objectives that provide a longer working distance, color correction, and improved focus over the entire field of view
  • Episcopic (reflected) and diascopic (transmitted) illumination system with Brightfield/Darkfield and polarizing has 100W halogen illumination with rheostat to control light intensity
  • Double-layer mechanical stage has 1mm stage divisions with 0.1mm vernier graduations and stage stop; graduated coarse and fine focus with tension control to prevent stage drift
